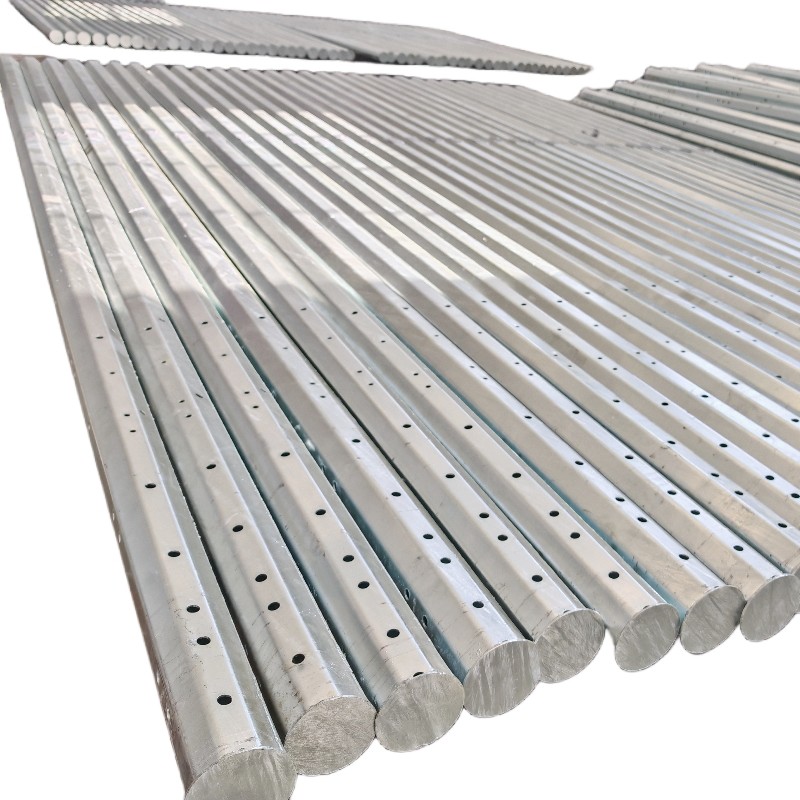

    9M 3mm Thick 345Mpa 5kN Steel Utility Pole Octagonal HDG Galvanized

    Ask Lasest Price
    Brand Name : Hongxin
    Model Number : HX-09
    Certification : ISO 9001
    Price : 800 USD
    Payment Terms : T/T,L/C
    Supply Ability : 1000 tons per month
    Delivery Time : Within 15 working days
    • Product Details
    • Company Profile

    9M 3mm Thick 345Mpa 5kN Steel Utility Pole Octagonal HDG Galvanized

    9M 3mm Thick 345Mpa 5kN Octagonal HDG Galvanized Utility Steel Pole


    Specifications

    Height: 9000mm

    Thickness: 3mm

    Segments: 1

    Design Load: 5kN

    Surface: Hot Dip Galvanized with min average coating thickness 86 microns


    Manufacturing Process

    Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.

    9M 3mm Thick 345Mpa 5kN Steel Utility Pole Octagonal HDG Galvanized


    Material

    Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.


    Finshed Products

    Steel Pole of National Electrification Administration

    (PHILIPPINES)

    Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.

    Height

    (ft)

    Thickness

    (mm)

    Butt Diameter

    (mm)

    Top

    Diameter

    (mm)

    Design

    Load

    (kg)

    Yield

    Stress

    (MPA)

    Zinc

    Coating

    (microns)

    25

    2.5

    152

    120

    300

    345

    86

    30

    3.0

    226

    127

    500

    345

    86

    35

    3.0

    248

    127

    500

    345

    86

    40

    3.0

    317

    127

    500

    345

    86

    45

    4.0

    328

    127

    750

    345

    86

    9M 3mm Thick 345Mpa 5kN Steel Utility Pole Octagonal HDG Galvanized

    Inspection
    To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
    We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.

    9M 3mm Thick 345Mpa 5kN Steel Utility Pole Octagonal HDG Galvanized


    Delivery
    We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.


    FAQ

    1. Are you a manufacturer or a trading company?
    A:We are the direct factory manufacturer and the trading company.

    2. Where is your company located?
    A:Our factory is located in Yinhe Road No.3, Wanshi town, Jiangsu, China(mainland).

    3. What are your main products?
    A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.

    4. What's your nearest port?
    A: Shanghai Port is our nearest port.

    5. What's your payment term?
    A: Normally 30% deposit and rest by TT before shipping. Or L/C.

    6. What's your delivery time?
    A: Normally within 15 working days. If our factory is busy and your quantity is large, then around one month.

    7. What's your price term?
    A: Price Term: EXW, FOB, CFR or CIF.
    EXW: Poles Cost
    FOB: Pole Cost + Land Transportation + Fee on Port
    CFR: Pole Cost + Land Transportation + Fee on Port + Sea Freight
    CIF: Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
